Container containing radioactive waste collapses, Fukushima Daiichi Nuclear Power Plant, storage method issues come to light
March 20, 2022
A series of radioactive waste containers stored outdoors at TEPCO’s Fukushima Daiichi Nuclear Power Plant were toppled and tilted by an earthquake late at night on March 16. Similar damage occurred during the Fukushima earthquake in February of last year, highlighting once again the challenges of storage methods. TEPCO is continuing to take stopgap measures until the waste is transferred to an indoor storage facility, but the Nuclear Regulation Authority is ready to request that more aggressive measures be taken.
Four units damaged, contents outside
As of January 19, there were a total of eight 1 meter square containers known to have toppled over. Four of them were damaged and their contents were exposed. All of them contained low-dose used protective clothing. Several other containers in two other groups of containers covered with sheets also toppled over.
Seventy-seven containers were tilted by the earthquake last February, and a total of 12 units toppled over at two locations. Some of the containers were four-tiered, and the shaking of the earthquake broke the connecting fittings, etc. Although the containers were re-stacked two or three-tiered and the bottom foundations were reinforced, the damage could not be prevented this time either.
In March of last year, one corroded waste container leaked a high dose of radioactive material onto the ground, which flowed into the port through a drainage channel. In July of the same year, rainwater that had entered a container for contaminated soil overflowed from inside the container.
A total of 85,500 outdoor waste containers are now in use. TEPCO inspected a total of 5,338 containers with a certain amount of surface radiation, and found that a total of 646 containers had corrosion or damage. Damage was found and emergency repairs were made. The risks associated with emergency evacuation-like waste management after the accident have become apparent.
Reduce risk outside the building.
The Regulatory Commission is becoming increasingly aware of the problem. At a regular meeting on February 2, Chairman Toyoshi Sarada mentioned the option of temporarily storing outdoor waste underground by covering it with soil. He stated that it would be difficult to gain the understanding of the local community, but considering the risk of leakage, it would be undesirable to leave the waste above ground.
TEPCO has announced a policy to remove all the contents of the containers to the storage facility by FY2028 to eliminate the outdoor storage, but there is no guarantee that an earthquake, typhoon, or other large-scale natural disaster will occur before the work is completed. There is no guarantee that this will not happen. If trouble occurs, it will lead to reputational damage to the local community.
Shinsuke Yamanaka, a member of the Regulatory Commission who inspected a group of containers at the No. 1 nuclear power plant on March 17, touched on the issue of outdoor waste in an interview after the visit and stressed, “It is important to talk about the inside of the reactor buildings, but right now I want you to prioritize risk reduction outside the buildings. He also expressed his desire to ask TEPCO to come up with concrete measures.
Fukushima Daiichi Nuclear Power Plant “debris” storage method to be reconsidered – Chairman of the Regulatory Commission, Mr. Sarada
February 2, 2022
The chairman of the Nuclear Regulation Authority (NRA), Mr. Toyoshi Sarada, has asked Tokyo Electric Power Company (TEPCO) to reconsider the storage method of concrete debris with a very small amount of radioactive materials from the Fukushima Daiichi Nuclear Power Plant, with a view to temporarily burying it underground.
It has been 11 years since the accident at the Fukushima Daiichi Nuclear Power Plant occurred in March 2011. The decommissioning of the nuclear power plant involves the removal of nuclear fuel that has cooled down after melting down. The biggest challenge is to remove the fuel debris. On the other hand, the disposal of low-level radioactive waste, which is generated in large quantities every day at the decommissioning site, is also a major issue.
As a result of the hydrogen explosions in the three reactor buildings, concrete fragments were scattered.
At a meeting of the Nuclear Regulation Authority held on the 2nd, Mr. Sarada said, “Even if we assume that the waste will be transferred in the future, there are some areas where it would be much more advantageous to bury and store the waste,” and expressed his desire to ask TEPCO to reconsider the storage method with a view to temporarily burying it underground.
The amount of waste from the decommissioning of the nuclear power plant is increasing, but the management at the site is not up to the task, so a realistic storage method must be considered with an eye to the future, he said.
Japan Struggles to Secure Radioactive Nuclear Waste Dump Sites
A small, aging town grapples with the financial lure of storing radioactive waste underground.
Japan’s worsening depopulation crisis is crippling the public finances of regional towns. Now one small town has made national headlines after expressing interest in storing radioactive nuclear waste underground in a last ditch effort to save itself from impending bankruptcy.
The small town of Suttsu in Hokkaido, the northernmost main island of Japan, has a population of just under 3,000 people. It’s the first local municipality to volunteer for the permanent storage site of highly radioactive nuclear waste and nuclear spent fuel. Suttsu Mayor Kataoka Haruo says the town has no more than 10 years left to find new sources of income after struggling with a slump in sales of seafood due to the global coronavirus pandemic.
Kataoka says there is an impending sense of crisis unless an urgent financial boost in the form of a government grant can be secured. He has called on local residents not to dismiss the idea of applying for the phase one “literature survey” without weighing the ways the grant could be spent — in contrast to the harsh reality of town funds running dry in 10 years’ time.
In Japan there are more than 2,500 containers of nuclear waste being stored in limbo without a permanent disposal site. Currently, the waste is stored temporarily in Aomori prefecture in northwest Japan at the Japan Nuclear Waste Storage Management Center. According to the Ministry of Economy, Trade, and Industry there are also approximately 19,000 tons of spent nuclear fuel stored at each nuclear power plant.
Nuclear waste projects immense heat and it needs to be cooled through exposure to air for between 30 to 50 years before it can be transferred and stored underground. However, it takes roughly 1,000 years to 100,000 years for radiation intensity to drop to safe levels.
The 2011 Fukushima nuclear disaster left long-lasting trauma further exasperating Japan’s already vexed relationship with nuclear energy as a resource deficient nation. The aftermath of the disaster and the slow road to recovery prompted many people to object to nuclear waste storage not only on geographic grounds but also out of strong emotional opposition.
Hokkaido has built a global reputation for its high quality dairy, agricultural products, and seafood. Nuclear waste storage, and the negative publicity that would follow, could jeopardize those industries.
With the proposal, local residents in Sutsu have been placed in a difficult situation, weighing up the health of their children and future generations against the town’s financial prospects and viable funding opportunities.
In August, Kataoka said he would not apply for phase one without the understanding of the general public. Last week, Kataoka held a local briefing session aiming to deepen local understanding and consent. But after discussing the damage to the town’s reputation and the possible conflict with a previous ordinance against accepting nuclear waste set by a radioactive waste research facility created in Hokkaido in 2000, Kataoka indicated the application for phase one would likely be delayed.
In 2000 the government enacted the Final Disposal Law, which outlined criteria for electing a permanent storage site. A three-stage investigation process sets out excavation to be deeper than 300 meters below ground and in doing so a survey of volcanoes, active fault lines, and underground rock must be performed in addition to installing an underground survey facility. It’s estimated that steps one through to three will take approximately 20 years in total.
In 2017 the government released a scientific map of Japan, pinpointing towns with suitable geographic conditions to host final disposal sites. If the application and survey are approved successfully, towns are eligible for grants up to 2 billion yen (around $19 million at current exchange rates) from the central government and another 7 billion yen if stage two goes ahead. In 2002 The Nuclear Waste Management of Japan (NUMO) launched an open call for local municipalities to consider applying for an initial investigation stage without success. Three years after the release of the map, NUMO has attempted to garner public support by hosting over 100 local discussion meetings all over Japan. Suttsu was the first town to express interest in phase one out of 900 local municipalities.
The final nuclear waste site is expected to make room underground for 40,000 barrels requiring six to 10 square kilometers — the equivalent of 214 Tokyo Dome Stadiums — to a tune of 3.9 trillion yen.
The government is currently formulating a “nuclear fuel cycle policy,” which aims to reduce the amount of nuclear waste generated by encouraging the recycling and reuse of spent fuel. But one major criticism of Japan’s nuclear power policy is the lack of a comprehensive strategy. The two year period for a “literature survey” has been touted as an opportunity for Japan to seriously consider the cleanup of nuclear power.
Fukushima plant radioactive water could be stored in tanks long term: gov’t source
Heading toward 1.37 million tons of strontium-90 tea, enough to give a 500ml portion to 2.74 billion people
May 13, 2019
The Japanese administration is considering keeping the enormous and still growing volume of radioactively contaminated water at the disaster-stricken Fukushima Daiichi nuclear plant in storage tanks for the long term, a source close to the government has told the Mainichi Shimbun.
Previously, five options to deal with the contaminated water were being compared: releasing it into the ocean; piping it into a deep stratum of the Earth’s crust; releasing it into the atmosphere as steam; encasing it in cement and burying it; and using electrolysis to hydrogenate tritium — a relatively low-impact radioactive element not filtered out with plant operator Tokyo Electric Power Co. (TEPCO)’s current decontamination systems — in the water before releasing it into the air.
However, strontium 90 — a radioactive element that can accumulate in the bones — was discovered in treated water in government maximum-busting concentrations just before August 2018 public hearings on the contaminated water problem. The revelation “completely destroyed the premise for discussions,” the Mainichi source said, and public worries about releasing the water into the environment prompted the government to reconsider.
As a result, a Ministry of Economy, Trade and Industry expert committee on the contaminated water issue set to meet in June will add long-term tank storage to the existing five options.
According to the government source, the administration will take the expert committee’s opinions into account when it makes a final decision on the water problem. However, views in the prime minister’s office are apparently split. Furthermore, the government is worried that taking any decision ahead of the 2020 Tokyo Games could invite increased attention on the problem and risks the spread of harmful rumors, making it very difficult to project which method will be chosen.
Any of the options is expected to take about two years to implement, a senior industry ministry official said.
Meanwhile, Nuclear Regulation Authority (NRA) Chairman Toyoshi Fuketa warned at a March news conference that “the time when a decision must be made (on how to deal with the contaminated water) is very close indeed.”

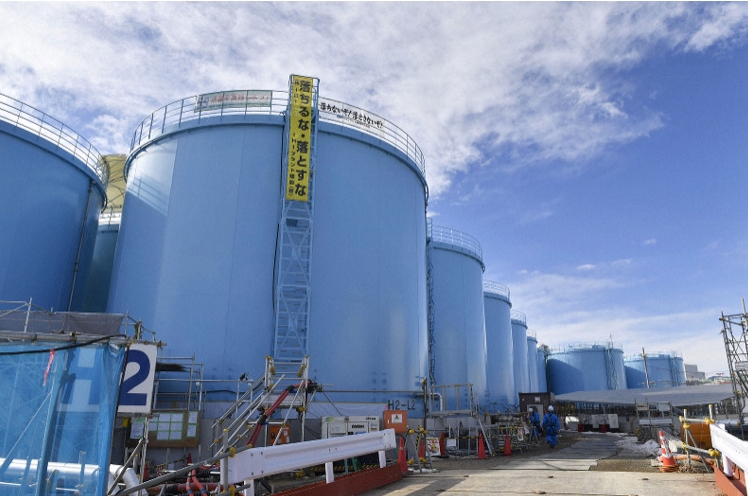

There is already over 1 million metric tons of contaminated water stored on-site at the Fukushima Daiichi plant, while existing plans will see total capacity max out at 1.37 million tons in 2020. At the current rate of increase, all the 10-meter-tall tanks will be full in four to five years. It is thought that the government will look into processing the water in small quantities as the total volume nears capacity, beginning with the most lightly contaminated.
However, “from a scientific and technical standpoint, the only choice is to dilute it and release it into the ocean,” Fuketa said at the March news conference. The industry ministry’s panel of experts has released figures showing this is also the fastest and lowest-cost option.
The water volume continues to increase due to ground water flowing into the fractured reactor buildings, and the need to keep pumping more water into the shattered reactor cores to cool the nuclear fuel debris inside. Just after the March 2011 triple-meltdown at the plant triggered by the Great East Japan Earthquake and tsunami, the amount of groundwater flowing into the reactor buildings was around 400 tons daily. A subterranean ice wall and other measures have cut this by about half, but eliminating it entirely is impossible.
It is expected to take until 2051 to finish decommissioning the Fukushima Daiichi plant, including processing the contaminated water.
https://mainichi.jp/english/articles/20190513/p2a/00m/0na/006000c?fbclid=IwAR073VgJRSeZObQZWxnufaW7bQVUNFuGKIoJAdnxFOI-XzjQhvJa2pvqQQY
Fierce opposition to recycling radioactive soil from Fukushima
Niigata gov’t to handle radioactive mud stored since Fukushima crisis
Rubble storage at Fukushima plant shown to media
Okuma-Futaba Incineration & Storage Facility
Official storage of contaminated soil begins in Fukushima
Sprawling radioactive waste storage facility opens for business in Fukushima
Work to store tainted soil at Fukushima facility begins
Nuclear storage crisis grows as reactor restarts continue
An official from the Agency for Natural Resources and the Nuclear Waste Management Organization of Japan shows a model of a proposed underground burial facility for nuclear waste during a town hall meeting in Toyama on May 20
TOYAMA – More than six years after the March 11, 2011, Tohoku quake, tsunami, and triple meltdown at the Fukushima No. 1 nuclear power plant, Japan is accelerating efforts to restart as many reactors as it possibly can. Four have been revived so far, and Kansai Electric Power Co. plans to restart the Takahama No. 3 unit soon.
But the rush to restart them has only highlighted the fact that Japan still has no final repository for its high-level radioactive waste. Original plans to first reprocess spent fuel at the Rokkasho facility in Aomori Prefecture before final disposal somewhere else have long been stalled. After 17 years asking prefectures and municipalities around the country to host such a site, no takers have been found.
So the government has changed its approach, saying it will draw up a map by this summer of “scientifically appropriate” candidate sites around the country.
To explain what that means, a series of town hall meetings are taking place at select locations this month and next month.
On May 20, officials from the Agency for Natural Resources and the Nuclear Waste Management Organization of Japan (NUMO) were in Toyama, which is less than 50 km from the Shika nuclear power plant in neighboring Ishikawa Prefecture.
At present, there are about 18,000 tons of spent nuclear fuel stored in about 40,000 canisters at Japan’s nuclear power plants, said NUMO Executive Director Shinichi Ito. A final disposal site for high-level waste produced when, or if, the fuel is reprocessed would need to be quite large. Most of it would be underground, with an elaborate tunnel system of transport vehicles to deliver and store the waste.
“In terms of scale, above-ground facilities at a final depository would be between 1 to 2 sq. km, and the underground portion would be 6 to 10 sq. km in area, located at a depth of more than 300 meters from the surface. There would be some 200 km of tunnels in total for the storage facilities,” Ito said.
Waste would be stored at the site for around a half century. The basic cost for building a final depository is ¥3.7 trillion.
In drawing up the map of what constitutes a scientifically appropriate site, the government has a list of conditions and standards based on what it does not want.
A site should not be built within a 15-km radius of a volcano, and not near active fault lines at least 10 km long. In addition, it should not be situated in area where there is a lot of geothermal activity.
The government is also seeking a site that is within 20 km of a port where ships carrying the waste could dock, since transporting waste by ship, the government says, is the most appropriate method.
Iwao Miyamoto, director of the public relations office of the Agency for Natural Resources’ Radioactive Waste Management Office, said that, after the map is publicized and dialogue takes place with authorities deemed to have appropriate sites, a three-stage survey process would be carried out.
“The first stage would be to research the seismological and geological history of a potential site, checking to see how frequently earthquakes and volcanoes in and around the area have occurred,” Miyamoto said. “The second stage would be on-site drilling to determine how porous the rock bed is, and the third step is a precision survey to determine if the site can handle an underground storage facility.
“The first survey stage is expected to take two years, the second stage four years, and the final stage around 14 years,” he added.
In an attempt to entice the authorities at a chosen site, the central government will offer funding and economic incentives that the municipalities hosting nuclear power plants have long enjoyed.
“NUMO will work with a government that accepts a final storage facility to renovate and expand its roads, ports, and information systems,” Ito said. “There will also be donations for revitalizing the local economy via support for locally produced goods and for local culture.”
However, overcoming local political resistance in an area judged appropriate for a final depository is likely to be a long, difficult road. Nobody wants to be known as the town or village with a nuclear waste dump, and questions remain about the safety of transporting toxic waste by land or by sea.
Some governors in prefectures with many reactors have made it clear they will oppose any effort by the central government or utilities to bury nuclear waste on site or beside the plant that generated it.
“Fukui has accepted nuclear power plants. But it has no obligation to accept final disposal of nuclear waste,” Fukui Gov. Issei Nishikawa said in 2015. Fukui is home to 13 commercial reactors.
“We have our hands full just dealing with the nuclear reactors we have now,” Saga Gov. Yoshinori Yamaguchi said last year, indicating his prefecture would not accept being the site of a final repository. Saga hosts the four reactors at the Genkai plant run by Kyushu Electric. Yamaguchi approved the restart of Genkai units 3 and 4 in April.
Once the map is published, it is sure to galvanize opinion in those places judged appropriate and become a politically delicate topic. Yet with Agency for Natural Resources estimates showing the spent fuel pools of 17 power plants will run out of space within the next 15 years, if run continuously, the problem of final disposal grows more acute with each passing day. Pressure on those areas that fit the requirements for final disposal is likely to be intense.
At this point, though, the central government says that if a local government with a site deemed appropriate by the map still refuses once the survey begins, that will be the end of it.
“If there is official opposition at the local level at any stage of a survey, there would be no advancement to the next stage,” Miyamoto said.
However, given all of the problems Japan has had trying to make its reprocessing program work, critics say that attempting to draw up a plan for a final repository is a pipe dream.
” The Japanese government knows the current final nuclear waste repository program will never materialize. The whole project depends upon the creation of high-level vitrified waste canisters, i.e. the reprocessing of spent nuclear fuel. But the program also depends on Japan recovering and consuming tons and tons of plutonium
” The Rokkasho reprocessing plant’s commercial operation has been delayed 23 times, and the fast reactor program to consume the plutonium is at square one despite over a half century of effort,” said Aileen Mioko Smith of Kyoto-based Green Action.
Government to release map of potential final nuclear disposal sites this summer
Solidified nuclear waste mixed with glass is placed in canisters at a reprocessing plant in Rokkasho, Aomori Prefecture, in 2012
The government has set the criteria for a map meant to identify potential final disposal sites for high-level radioactive nuclear waste, paving the way for its release as early as this summer.
The process of finding a host for nuclear waste could face challenges amid public concerns over safety.
Based on the map, the government will approach select municipalities to allow research to be conducted for suitable sites to store waste from nuclear power generation.
For permanent disposal, high-level nuclear waste needs to be stored at a final depository more than 300 meters underground for up to about 100,000 years until radiation levels fall and there is no longer potential harm to humans and the environment.
The government plans to create a permanent underground repository somewhere in stable bedrock so the canisters can be stored for tens of thousands of years.
The map is likely to classify which areas are geologically suitable for such a structure to be built deep enough underground. This would rule out areas near active faults and volcanoes as well as oil and coal fields.
Based on waste transport criteria, the map is likely to show that zones within 20 km of the coastline are favorable to host final disposal sites.
The government hopes other municipalities — not just the ones located near nuclear power plants — may also become interested in hosting the disposal facilities. It also wants to show that a variety of places nationwide are suitable for nuclear waste management.
The map was originally planned for a 2016 release but the publication date was later postponed, as some local governments were wary that disposal sites would be imposed on them.
About 18,000 tons of spent fuel currently exist in Japan. Including spent fuel that has already been reprocessed, the country’s total jumps to about 25,000 canisters of vitrified high-level waste, all of which needs to be managed.
The process to find local governments willing to host final storage started in 2002, but little progress was made due mainly to opposition from local residents.
In May 2015, the central government introduced a plan announcing that final depository site selection would be based on scientific grounds, rather than waiting for municipalities to volunteer.
Before presenting the map, the government will hold symposiums between mid-May and June at nine cities to explain the map criteria to the public. The cities include Tokyo, Nagoya and Fukuoka.
Radioactive waste is classified into two categories: The high-level type is generated from reprocessing spent fuel by separating the plutonium and uranium for recycling, while the low level type refers to all other waste.
High-level waste is a byproduct of fission in the reactor core, which is very hot and dangerous. It is mixed with glass and solidified before being placed in robust heat-resistant stainless steel canisters that are 130 cm high, 40 cm in diameter and weigh 500 kg each.
A full canister emits about 1,500 sieverts per hour — an extremely lethal biological level — and has a surface temperature in excess of 200 degrees.
Its radioactivity starts at 20,000 trillion becquerels. It will take about 1,000 years to fall to one-thousandth of that level, and tens of thousands of years to weaken to the same intensity as natural uranium ore, the Natural Resources and Energy Agency says.
Worldwide, only Finland and Sweden have been able to successfully decide on a final depository site for nuclear waste, while many other countries with nuclear plants face difficulties in doing so.
The United States decided in 2009 to call off a plan to build a site to dispose spent fuel in Nevada’s Yucca Mountain due to local opposition, but President Donald Trump earmarked funds to revive the plan in the budget proposal for fiscal 2018 unveiled in March.
In Japan, the selection process is also a touchy issue and has triggered conflicts in the communities around which prospective depository sites have been considered.
In one example, Minamiosumi Mayor Toshihiko Morita in Kagoshima Prefecture filed a criminal complaint against a 65-year-old resident for libel, claiming that his allegations that the rural town office had been actively inviting such a facility was not only groundless but also defamation.
The resident handed out flyers to about 500 households in the town in January which said Morita went to Tokai, Ibaraki Prefecture, and Horonobe in Hokkaido at the invitation of the private sector involved in the construction of nuclear waste disposal facilities. Both municipalities host nuclear-related facilities.
Morita flatly denied the allegations, telling Kyodo News in writing that he has heard “rumors” that there have been moves aimed at hosting a nuclear waste disposal facility but “I myself haven’t gone anywhere and been treated to anything.”
“I would reject any request from the central government” to host one, Morita said. The town approved an ordinance to reject a plan to host a nuclear waste disposal facility the year after the 2011 nuclear crisis at the Fukushima No. 1 plant.
A supporter of the mayor, however, did visit nuclear-related facilities in locations including Rokkasho, Aomori Prefecture, several years ago, according to the supporter’s admission, and a Tokyo company covered the expenses of the trip.
Transfer sites for 610 tons of spent nuclear fuel undecided; decommissioning plans may be affected
Spent nuclear fuel is stored in a pool at the La Hague reprocessing facility in northwestern France in October. It is one of the most dangerous sites in the world, with its 10,000 tons of spent fuel. We were afraid of the Fukushima Daiichi fuel pool 4 but it was nothing: The whole fuel of the Hague corresponds to radiotoxicity 360 times greater than Chernobyl.
About 610 tons of spent nuclear fuel stored at seven of the 17 reactors in Japan that are set to be decommissioned have no fixed transfer destination, it was learned Sunday, threatening to hold up the decommissioning process.
If it remains undecided where to transfer the spent nuclear fuel, work to dismantle reactor buildings and other structures may not be carried out as planned.
The tally excludes the six reactors at Tokyo Electric Power Co. Holdings Inc.’s Fukushima No. 1 plant, which was heavily damaged by the March 2011 earthquake and tsunami.
The seven reactors are the Japan Atomic Energy Agency’s Fugen advanced converter reactor, the agency’s Monju prototype fast-breeder reactor, Japan Atomic Power Co.’s reactor 1 at its Tsuruga plant, reactors 1 and 2 of Kansai Electric Power Co.’s Mihama plant, reactor 1 of Chugoku Electric Power Co.’s Shimane plant and reactor 1 of Kyushu Electric Power Co.’s Genkai plant, according to the companies and the agency.
The Fugen reactor has 70 tons of spent mixed-oxide, or MOX, fuel, a blend of uranium and plutonium recycled from spent nuclear fuel.
The agency has abandoned its plans to move the MOX fuel out of the reactor site in the current fiscal year to March 2018. It has considered consigning the reprocessing of the fuel overseas but a contract has not been signed yet.
The agency’s schedule to finish the decommissioning work by fiscal 2033 has remained unchanged, but an official admitted that the timetable will be affected if a decision on where to transfer the spent fuel is not made.
As for the trouble-prone Monju reactor, the agency has yet to submit a decommissioning program to authorities. How to deal with 22 tons of spent MOX fuel at the reactor is a major issue.
The Mihama No. 1 reactor has 75.7 tons of spent conventional nuclear fuel and 1.3 tons of spent MOX fuel, while the No. 2 reactor has 202 tons of spent nuclear fuel. Kansai Electric plans to take them out of Fukui Prefecture, which hosts the power plant, by fiscal 2035, but the transfer location has not yet been selected.
At the Tsuruga plant’s reactor 1, Japan Atomic Power plans to transfer 31.1 tons of the reactor’s 50-ton spent nuclear fuel to the fuel pool of reactor 2, with the rest to be transported by fiscal 2026 to a Japan Nuclear Fuel reprocessing plant under construction in the village of Rokkasho in Aomori Prefecture.
After being postponed more than 20 times, the completion of the reprocessing plant is currently slated for the first half of fiscal 2018 and the blueprint is undergoing screenings by the Nuclear Regulation Authority, a nuclear watchdog.
As nuclear fuel cannot be brought into the reprocessing plant until it starts operations after receiving all necessary regulatory approval, it is uncertain whether the Tsuruga reactor fuel can be transferred as planned.
Chugoku Electric aims to transfer 122.7 tons of spent nuclear fuel at its Shimane plant’s reactor 1 to the Rokkasho reprocessing plant by fiscal 2029.
Kyushu Electric hopes to take 97.2 tons of spent nuclear fuel at the Genkai reactor 1 out of its fuel pool by fiscal 2029, but the destination has not been fixed.
At three other nuclear plants with reactors set to be decommissioned, spent nuclear fuel is mostly planned to be moved out of the current pools to other pools within the same plant.
In the case of Tepco’s disaster-stricken Fukushima No. 1 plant, the site of the 2011 triple meltdown accident, where the 2,130 tons of spent nuclear fuel will be transferred to has yet to be decided.
Still, the decommissioning work for the six reactors there will not be affected in any significant way for the time being, as more urgent tasks, such as a survey of melted fuel, have been given higher priority, officials said.
The Fukushima Decontamination, Waste Storage, Processing and Recycling Utopia
In Fukushima Prefecture, large quantities of contaminated soil and waste have been generated from decontamination activities. Currently, it is difficult to clarify methods of final disposal of such soil and waste. Until final disposal becomes available, it is necessary to establish an Interim Storage Facility (ISF) in order to manage and store soil and waste safely.
The only solution proposed is a storage facility of 16 km2 around the Fukushima plant for a period of 30 years. After that, time will tell, because the problems are endless.
The following materials generated in Fukushima Prefecture will be stored in the ISF.
1. Soil and waste (such as fallen leaves and branches) generated from decontamination activities, which have been stored at the Temporary Storage Sites.
2. Incineration ash with radioactive concentration more than 100,000 Bq/kg.

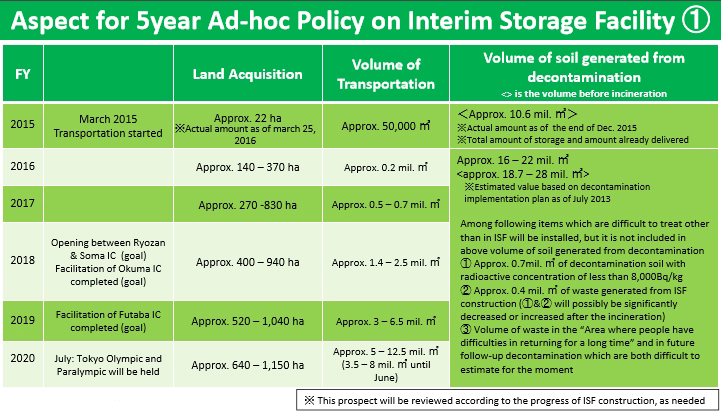

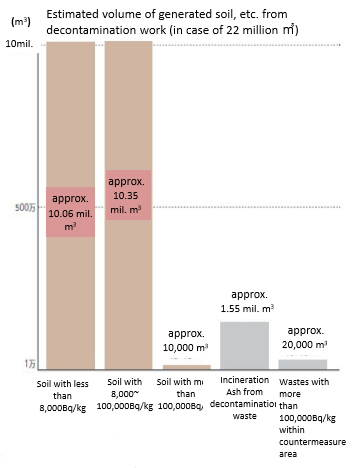

It is estimated that generated soil from decontamination will be approx. 16 ~22 mil. m3 after the volume reduction incineration, estimated value based on the decontamination implementation plan of July 2013. (Ref: approximately 13~18 times as much as the volume of Tokyo Dome (1.24 mil. m3) .
Transportation to Stock Yards
In order to confirm safe and secure delivery towards the transportation of a large amount of decontamination soil, MOE implemented the transportation approx. 1,000m3 each from 43 municipalities in Fukushima Prefecture from 2015-2016.
Actual achievement in 2016 as of July 30, 2016
Stored volume: 13,384m3 (58,766m3 in total)
Stock yards in Okuma: 4,883m3; stock yards in Futaba: 8,501m3
* Calculated on the assumption that the volume of a large bag is 1m3
Total number of trucks used: 2,279 (9,808 in total)
Stock yards in Okuma: 815 trucks; stock yards in Futaba:1,464 trucks

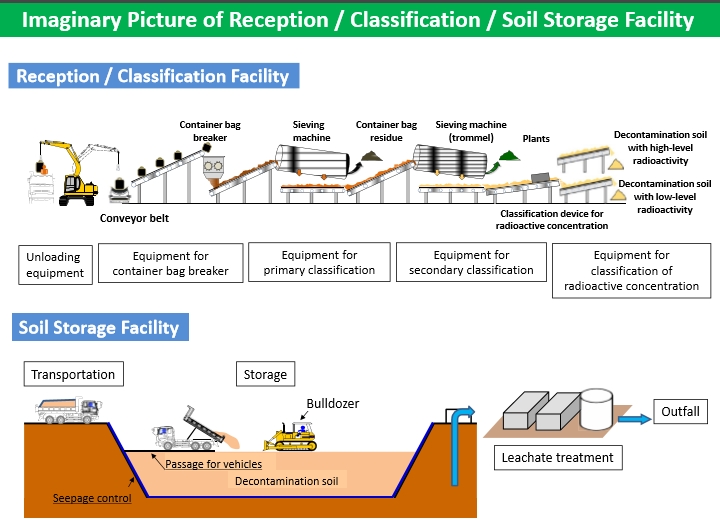

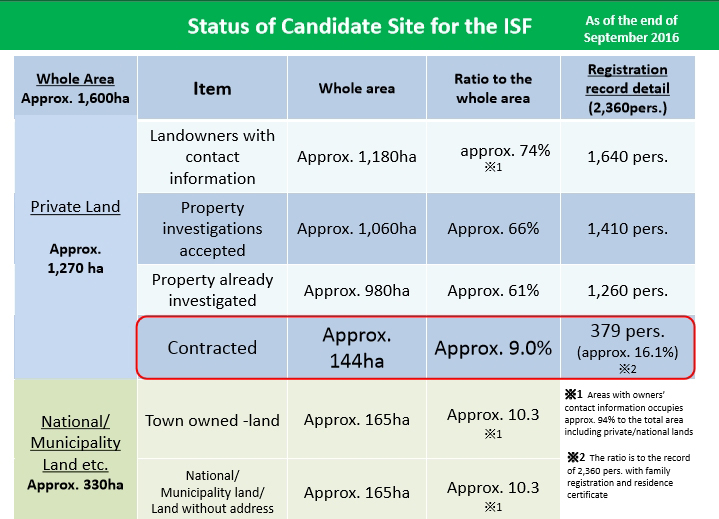

To construct facilities, it will need comprehensive area and 2/3 will be assumed to be used for facilitation. The possible volume for installation is to be 10,000m3/ha and 140,000m3/5ha for a storage facility, and will be installed from TSS to ISF sequentially.
Approximate period from contract with operators to ISF operation: 3months for TSS, 6months for delivery & classification, 12months for storage, 18months for incineration.
On the premise that infrastructure construction on roads for Okuma and Futaba IC would proceed as planned, the maximum volume of possible transportation is estimated: 2millions m3 /y before the operation of both IC, 4millions m3/y after Okuma IC & before Futaba IC, 6 millions m3/y after the both ICs operation.
Landowners are still reluctant to sell their land to put the waste. In late September 2016, according to the official data of the Ministry of Environment, only 379 owners out of 2360 had signed a contract. This represents an area of 144 ha, or about 9% of the total project.

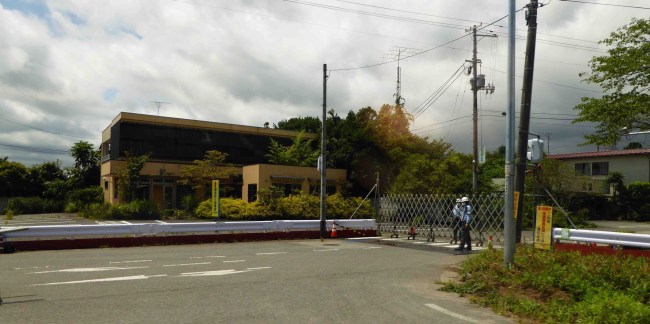

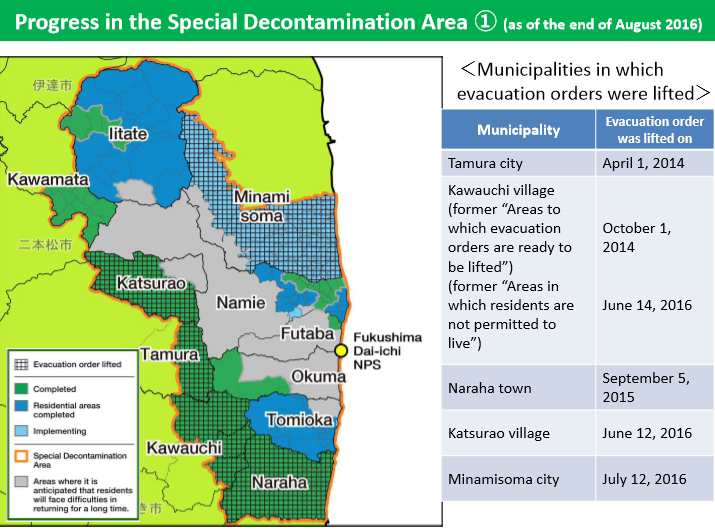

The town of Okuma, is almost entirely classified as “difficult to return”zone, therefore it intends to offer all its municipal land to put the waste. This represents 95 hectares, or about 10% of land considered in the town. This includes schools, the Fureai Park with some sports grounds … The town has not yet decided whether it would sell or would lease its land.
Meanwhile, it is an abandoned village:
The Joban railway line was partially destroyed by the tsunami, as here in Tomioka:

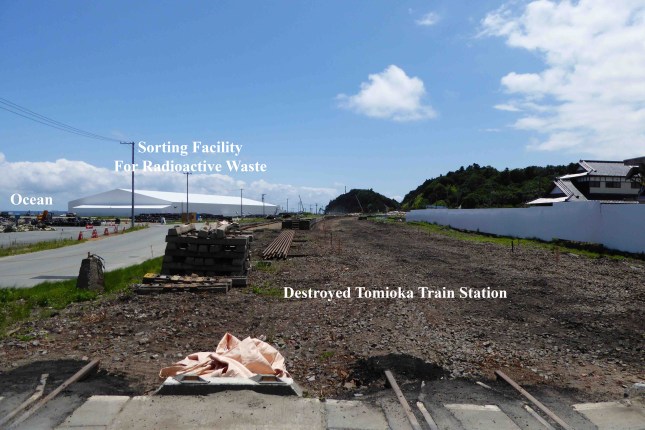

Destroyed Tomioka train station and sorting facility for radioactive waste
Some parts have reopened, but not in the most contaminated areas; between Tatsuta and Namie. Japan Railway wants to fully reopen the railway before 2020, avoiding the coast. Decontamination should produce 300,000 m3 of radioactive waste. The radioactive waste bags are along the railway, but they will need to be take them away. The Environment Ministry is negotiating with landowners owning the land beside the railway, but this is not enough because few responded favorably. So it’s a game of musical chairs that is planned: use the lands where some waste is right now after they’ll freed by the transfer of the waste to the storage center located around the Fukushima Dai-ichi.
Meanwhile, the waste is piling up everywhere:

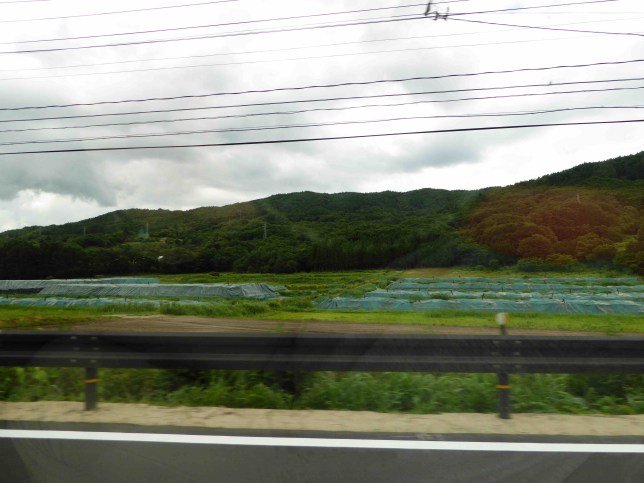

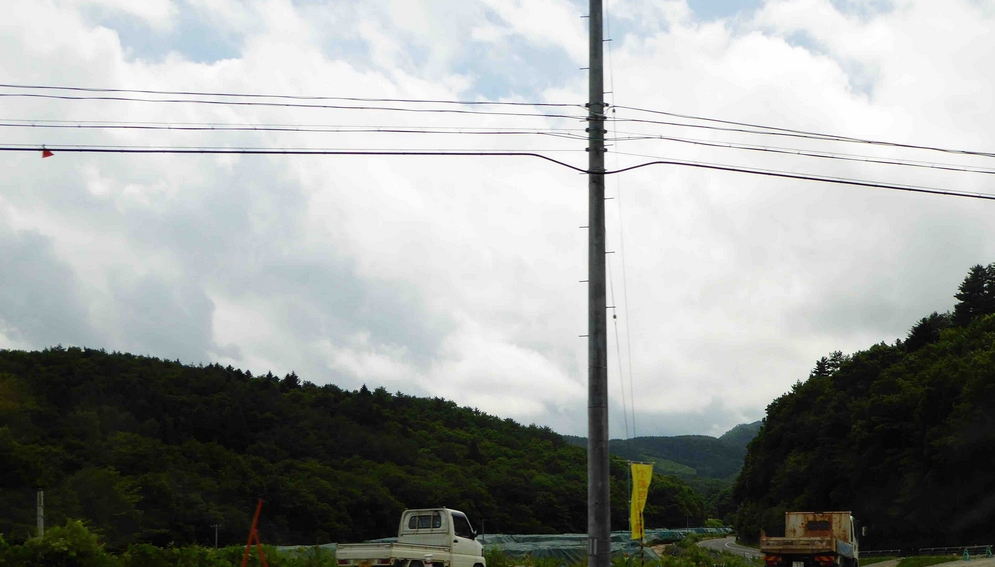

Radioactive waste in Iitate
Valley of radioactive waste in Iitate mura

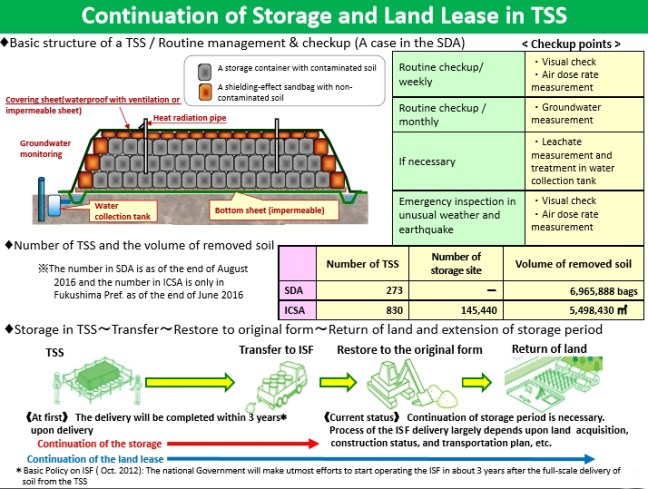

This storage was not expected to last as long, which is not without causing problems because the bags do not hold. Here in Tomioka, weeds grow back:

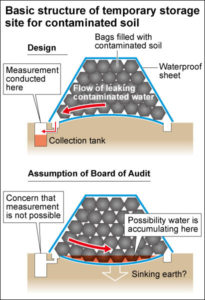

The equivalent of the Court of Accounts of Japan went to inspect some of these sites and found other problems, according to the Asahi. Those who receive contaminated soil, are elevated in the center so that the water flows over the edges where it can be harvested and controlled because the bags are not waterproof. There are up to 5 levels. With time and the weight of waste, a hollow that may appear in the center, and contaminated water accumulates there. Monitoring is difficult or impossible. See diagram of Asahi:
It is not normal that the Nuclear Regulatory Authority, the NRA does not control these storage sites for radioactive waste.
Regarding the waste from the decommissioning of nuclear power plants, the NRA wants to bury the most contaminated within 70 meters for 100 000 years. This is essentially reactor control rods. Utilities would bear responsibility for 300 to 400 years. They have not yet found where to have the sites … Read Asahi for more. http://www.asahi.com/ajw/articles/AJ201609020034.html
The government relies on the radioactive decay for these wastes to pass below the 8000 Bq / kg to be downgraded and utilized …
http://josen.env.go.jp/en/pdf/progressseet_progress_on_cleanup_efforts.pdf

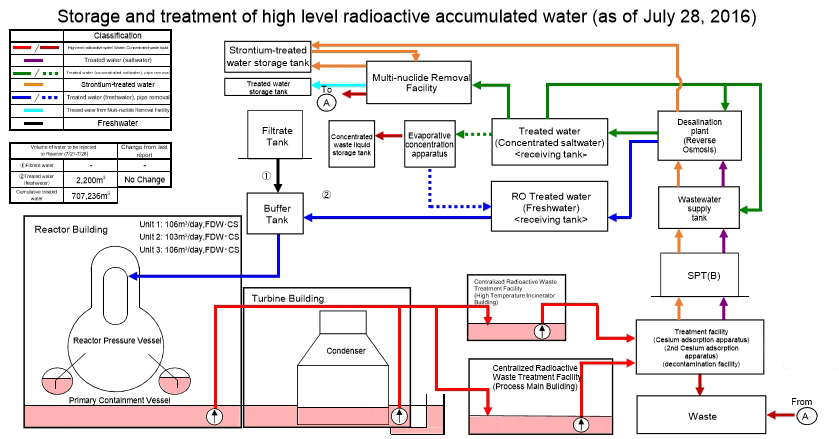

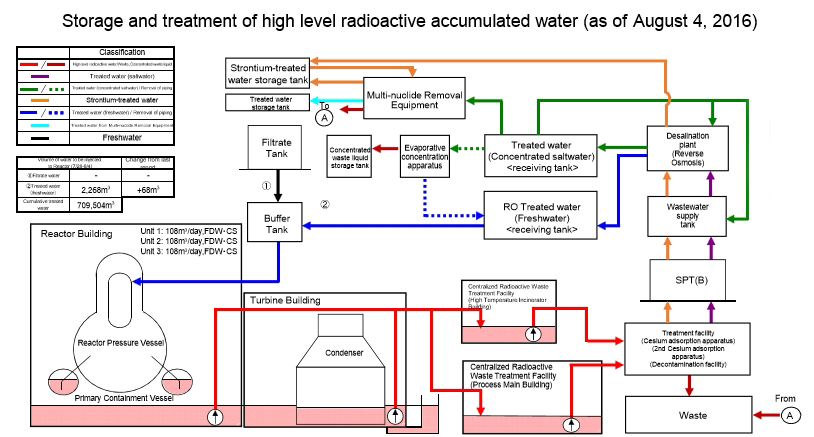

Situation of Storage and Treatment of Accumulated Water including Highly Concentrated Radioactive Materials at Fukushima Daiichi Nuclear Power Station
Situation of storing and treatment of accumulated water in the building (actual record) Stored amounts in each unit building (Units 1 to 4 (including condensers and trenches)) and stored and treated amounts, and other related data in the Accumulated Water Storing Facility as of July 28, 2016
Forecast of storing and treatment
(1) Short term forecast
Water transfer is planned so that the levels of the accumulated water in Units 1 and 2 and Units 3 and 4 building will be maintained around at the level of OP. 3,000, based on the stored amount in the Accumulated Water Storing Facilities and the operating situation of the radioactive material treatment equipment. Water is transferred to the Process Main Building and/or High Temperature Incinerator Building as Accumulated Water Storing Facilities. Treatment is implemented considering the state of storage and transfer of Accumulated Water Storing Facilities.

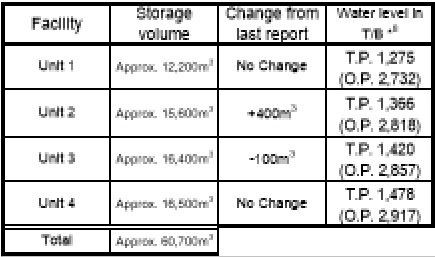

We assume stored amounts in each unit building (Units 1 to 4 (including condenser and trench)), and stored and treated amounts, and other related data in the Accumulated Water Storing 2 Facilities as of August 4, 2016.
(2) Middle term forecast
Regarding accumulated water in Units 1 and 2 buildings and Units 3 and 4 buildings, from the viewpoint of reducing the risks of discharging to the ocean and leaking into the groundwater, it is necessary to keep enough capacity for the accumulated water in the building until its level reaches OP. 4,000 and to keep the accumulated water level lower than the groundwater level. On the other hand, based on the view of limiting inflow of underwater to buildings and reducing the amount of emerged accumulated water, we are planning to transfer accumulated water keeping its level in the building around OP. 3,000 considering water tank capacity. As for accumulated water of the Process Main Building and the High Temperature Incinerator Building, we are planning to treat the accumulated water considering the situation of construction of middle and low level waste water tanks, the operation factor of the radioactive material treatment instruments and duration for maintenance.
We forecast stored amounts in each unit building (Units 1 to 4 (including condensers and trenches)), and storing and treatment situations in the Accumulated Water Storing Facilities for the next 3 months.
Stored amounts in each building and the water storage equipment are forecasted to be unchanged in case transfer and treatment were implemented as scheduled without rain. However, it would be subject to change depending on the operation factor of the radioactive material treatment instruments and so on. Also, the water treated at the radioactive material treatment equipment (fresh water and condensed salt water) can be stored in the middle and low level waste water tanks.
http://www.tepco.co.jp/en/press/corp-com/release/2016/1315201_7763.html
Government OKs multiple-site storage of radioactive waste
MITO, IBARAKI PREF. – The Environment Ministry has allowed Ibaraki Prefecture to continue storing waste contaminated with radioactive substances from the March 2011 nuclear disaster in multiple locations for the time being.
The ministry on Thursday supported ongoing use of the multiple-site storage option at a meeting with officials from Ibaraki Prefecture and 14 municipalities in the prefecture that are currently storing such designated waste on a temporary basis.
This is the first time the ministry, which has upheld a policy to construct one designated waste disposal facility in each of the prefectures of Miyagi, Ibaraki, Tochigi, Gunma and Chiba, to give the green light to multiple-site storage within a prefecture.
On Friday, Environment Minister Tamayo Marukawa said at a news conference the ministry will continue coordinating with local municipalities to deal with the issue.
As part of the process, she said, it would consult with the community to move forward with lifting the designation on waste where radiation levels have lowered and consolidate remaining waste.
Designated waste, including incineration ash, sewage sludge and paddy straw, is contaminated with radioactive substances exceeding 8,000 becquerels per kilogram as a result of the triple meltdown at Tokyo Electric Power Co.’s Fukushima No. 1 nuclear power plant caused by a major earthquake and tsunami.
Although the ministry has been pursuing the policy of concentrating such waste in one location in each of the five prefectures for disposal, the construction of disposal facilities has yet to transpire five years after the nuclear accident amid strong opposition from local residents.
The ministry’s decision to tolerate multiple-site storage is apparently intended to overcome the situation.
The ministry plans to have the municipalities in Ibaraki Prefecture continue safely storing designated waste for now, and have them dispose of the waste as general waste after radiation levels fall below 8,000 becquerels per kilogram.
As a result, the ministry forecasts that the amount of designated waste in the prefecture will drop to about 0.6 ton in about 10 years from 3,643 tons at present.
It will examine whether multiple-site storage can be continued in Gunma and Chiba prefectures, where municipalities are storing designated waste indoors just like those in Ibaraki Prefecture.
At Thursday’s meeting, the ministry proposed rules that would require the central and local governments to hold talks in advance if the radioactive waste designation is to be lifted.
The ministry also indicated a plan to consider providing financial support to municipalities that dispose of the waste after removal of the designation as radioactive waste at their existing facilities.
http://www.japantimes.co.jp/news/2016/02/05/national/government-oks-multiple-site-storage-radioactive-waste/#.VrTSbFLzN_l
1.This Month
NOT MY TAXONOMY: FINAL MOBILISATION’ You can find the call to action and the groups supporting the mobilisation here.
https://www.themovementhub.org/stories/not-my-taxonomy-final-mobilisation/
http://www.chainehumaine.fr/actualite-2/fr/pas-taxonomie
Join the mobilisations to Strasbourg, where the European Parliament will vote on the new taxonomy, in the week of the 4th of July.
Where? A base camp is planned in GUNDERSHOFFEN (exact address: 1 chemin de la Scierie, 67110 GUNDERSHOFFEN) from Saturday the 2nd until Thursday the 7th of July in the region.
It is a meadow on which commodities will be set up and with a barn, so make sure to bring camping gear, sleeping bags and mats, as well as toiletries and other camping gear you may need. There will be possibilities for public transport as well as shuttle buses between the camp and Strasbourg.
If you are coming in a larger group, let the coalition know by emailing mobi-strasbourg@riseup.net so that they have an overview of how many people will be coming. This will help the logistics team make sure to provide enough facilities, such as tent space, food, etc.
When? Action days will take place between July 4th and 6th, depending on when the vote and debate about the taxonomy will take place; this will be announced the week before. It is advised to arrive at the very latest on Sunday the 3rd of July afternoon, and plan your travel back for Thursday, July 7th after noon or in the evening ideally.
How to get there?
There will be buses coming to Strasbourg and the base camp from different parts of Europe. Otherwise, the GUNDERSHOFFEN local train station is situated a mere 5 minutes by foot from the campsite.
Are you and your groups interested in organising a bus? Please get in touch with the mobilisation team via mobi-strasbourg@riseup.net.
-
Archives
- July 2022 (39)
- June 2022 (277)
- May 2022 (375)
- April 2022 (378)
- March 2022 (405)
- February 2022 (333)
- January 2022 (422)
- December 2021 (299)
- November 2021 (400)
- October 2021 (346)
- September 2021 (291)
- August 2021 (291)
-
Categories
- 1
- 1 NUCLEAR ISSUES
- business and costs
- climate change
- culture and arts
- ENERGY
- environment
- health
- history
- indigenous issues
- Legal
- marketing of nuclear
- media
- opposition to nuclear
- PERSONAL STORIES
- politics
- politics international
- Religion and ethics
- safety
- secrets,lies and civil liberties
- spinbuster
- technology
- Uranium
- wastes
- weapons and war
- Women
- 2 WORLD
- ACTION
- AFRICA
- AUSTRALIA
- Christina's notes
- Christina's themes
- culture and arts
- Fuk 2022
- Fukushima 2017
- Fukushima 2018
- fukushima 2019
- Fukushima 2020
- Fukushima 2021
- general
- global warming
- Humour (God we need it)
- Nuclear
- RARE EARTHS
- Reference
- resources – print
- Resources -audiovicual
- World
- World Nuclear
- YouTube
-
RSS
Entries RSS
Comments RSS
nuclear-news
